DNC System

DNC System

Portable Program Transfer Device (USB–RS232 DNC Unit)
This portable program transfer device is a compact and reliable solution for transferring CNC machine programs between a standard USB flash drive and the CNC controller via the RS232 communication port. It is widely used for Drip Feed DNC operations as well as program uploading and downloading, eliminating the need for a dedicated PC at the machine.

The device enables seamless communication with legacy and modern CNC controls that support RS232, making it ideal for shop floors where stable, simple, and fast data transfer is required.

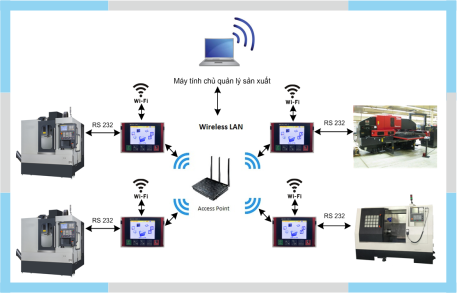

Programs can be transferred from a PC to the device through Wi-Fi connectivity, enabling fast, wireless data exchange without the need for physical cables. This feature simplifies program management, reduces setup time, and allows operators to send, update, or manage CNC programs remotely from the PC.

Key Functions & Capabilities

• Program Upload & Download: Easily transfer part programs from USB to CNC control and retrieve existing programs from the machine to USB.

• Drip Feed (DNC) Operation: Supports continuous program feeding for large files that exceed the CNC controller’s internal memory.

• Standalone Operation: Works independently without a computer, reducing setup complexity and maintenance.

• RS232 Communication: Direct interface with CNC controls through standard serial communication parameters.

• File Name Compatibility: Supports commonly used CNC file extensions: .TXT, .NC, .DAT, .TAP

• High Reliability: Stable data transmission minimizes communication errors and program interruptions.

Benefits

• Reduces machine idle time caused by program transfer delays

• Simplifies CNC program management on the shop floor

• Ideal for older CNC machines with limited memory

• Portable and easy to move between multiple machines

• Cost-effective alternative to PC-based DNC systems

• Enables fast, wireless program transfer from PC to the device via Wi-Fi connectivity

Typical Applications

• CNC Turret Punch Press

• CNC Milling and Turning Machines

• Any CNC system with RS232 interface

This portable DNC program transfer device is a practical and efficient tool for CNC users seeking quick program transfer, dependable drip feeding, and hassle-free operation, ensuring smooth production and improved machine utilization.
